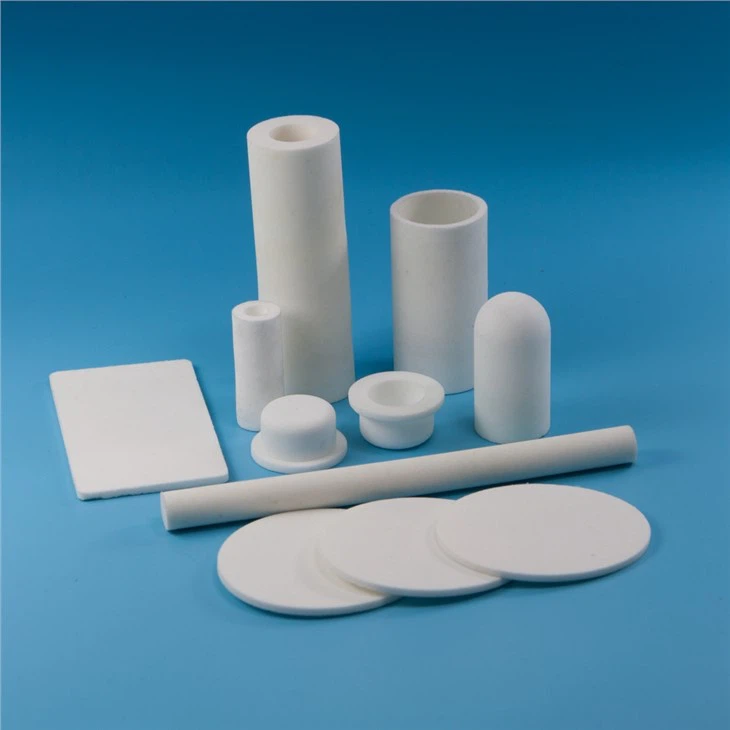

Sintered Polypropylene Fibers Polyester Polyamide Filter
DALON FILTER, is a brand name (DB) for Sintered Polypropylene Fibers Polyester Polyamide Filter as high porosity sintered elements from spherical powders. The pores are mechanically respect to size and filtering degree after the sintering process.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SINTERED PLASTIC FILTERS ADVANTAGE:
Manufacturing of Sintered Polypropylene Fibers Polyester Polyamide Filter
Molding:
Shape, size and the powder particles are important parameters which affect the properties filtering degree of Sintered Polypropylene Fibers Polyester Polyamide Filter.
DALON FILTER filters are produced by sintering technique. The powder is filled into moldings and then sintered inside of them.
Sintering:
Sintering is the processing step for all Powder metallurgy products, its bonding of powder particles
through fusion at temperatures well below the melting point. The structure of filters, after sintering, shows that the grain boundaries run over the original particle boundaries. Sintering gives the high porosity material its shape-stability and properties of a strong metal component.
EXPLORE P/M FILTER TYPES
Our Filter Types
CYLINDER FILTER
FILTER DISC
FILTER CAP
CUSTOMIZED DESIGNS
Detailed Images
Filter Disc

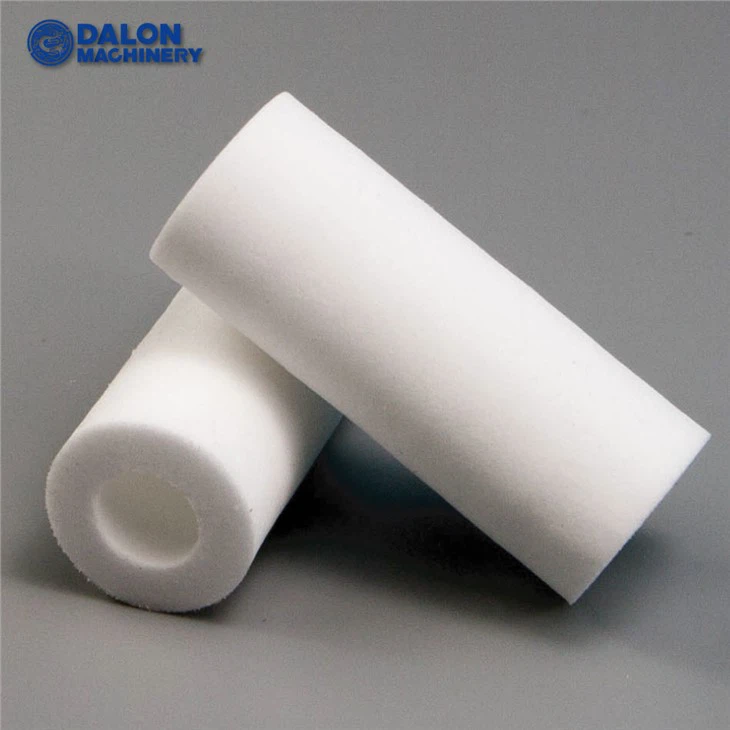

Filter Cylinder
Filter Cartridge
Filter Properties
DALON FILTER conical with or without flange
Ø d 4 mm to Ø d 100 mm
h 8 mm to h 250 mm
DALON FILTER conical
Ø d 4 mm to Ø d 100 mm
h 5 mm to h 250 mm
DALON FILTER Cones with flange
Ø d 2 mm to Ø d 200 mm
h 2 mm to h 250 mm
|
Properties of DALON FILTER
|
|||||||
|
Filter Grade
|
Porosity
|
Permeability Coefficients
|
Pore size distribution
|
Shear strength
|
|||
|
[micron]
|
[%]
|
[10-12 m2]
|
[10-7 m2]
|
[dmin] um
|
MFP um
|
[dmax] um
|
[N/mm2]
|
|
8
|
29
|
2
|
52
|
8
|
11
|
21
|
130
|
|
12
|
32
|
6
|
64
|
11
|
15
|
37
|
120
|
|
20
|
38
|
10
|
83
|
18
|
26
|
57
|
110
|
|
30
|
36
|
14
|
89
|
21
|
31
|
61
|
100
|
|
45
|
37
|
43
|
144
|
30
|
47
|
101
|
90
|
|
60
|
41
|
50
|
202
|
31
|
53
|
147
|
90
|
|
80
|
42
|
114
|
282
|
37
|
72
|
175
|
80
|
|
100
|
42
|
127
|
406
|
48
|
98
|
220
|
70
|
|
120
|
40
|
230
|
633
|
65
|
125
|
280
|
60
|
|
150
|
44
|
248
|
643
|
68
|
140
|
305
|
40
|
|
200
|
48
|
463
|
1046
|
105
|
195
|
500
|
30
|
Certificate & Packing
DALON FILTER FAQ:
Q: What is MOQ?
A: We are enjoying to grow up together with all of our clients whatever big or small orders. You will become bigger and bigger to be with DALON.
Q: Can DALON offer design services?
A: DALON have R&D and can offer special design about your requirements with drawing 3D in format IGES/STEP, PDF/ CAD in DGW/DXF & photos.
Q: Tooling Charge?
A: Tooling charge is one off when first order, all future orders would not charge again even tooling repair or under maintains.
