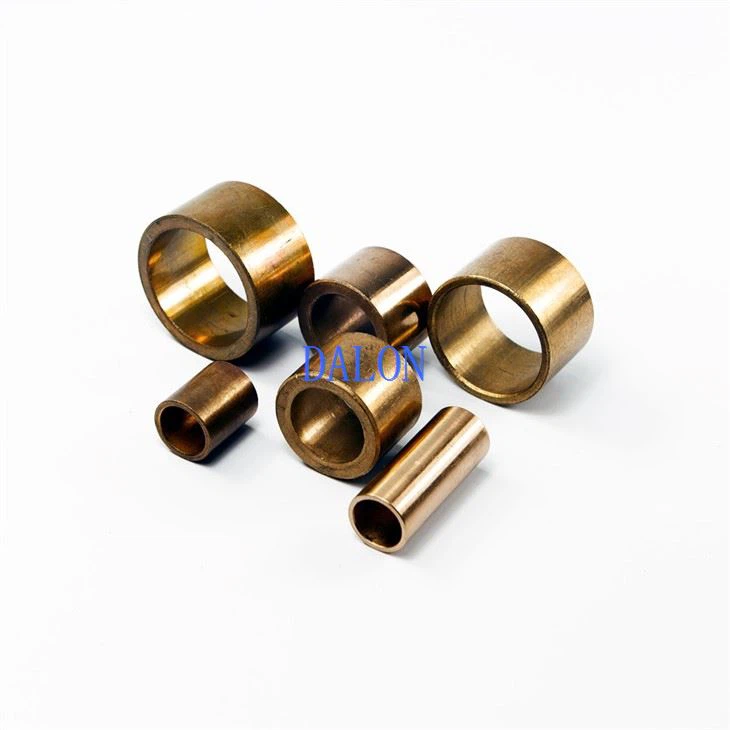

Starter Bushing
DALON self-lubricating sintered bronze bushing are manufactured of pressed copper and tin powders by sintered technology and impregnated with lubricating oil and high porosity (20-25% in volume). The oil contained in the porosity provides a constant lubrication between bearing and shaft, the system does not need any additional external lubricant, allows this type of sintered bronze bushing to work under hydrodynamic conditions. which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
DALON BUSHING INTRODUCTION:
DALON self-lubricating Starter Bushing are manufactured of pressed copper and tin powders by sinter technology and impregnated with lubricating oil and high porosity (20-25% in volume).
The oil contained in the porosity provides a constant lubrication between bearing and shaft, the system does not need any additional external lubricant, allows this type of Starter Bushing to work under hydrodynamic conditions. which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
|
System of Measurement |
Inch / Metric |
|
Bearing Type |
Plain |
|
Plain Bearing Type |
Sleeve / Flange / Spherical * with Ring |
|
For Load Direction |
Radial |
|
Material |
SAE841 Bronze(CuSn9010) / 663 /A50-B50 |
|
Tolerance Standard |
F7 r7 Js13 |
|
Lubrication Method |
Embedded Lubricated |
|
For Shaft Type |
Round |
|
Shaft Mount Type |
Slip Fit |
Load Direction:
All Starter Bushing are designed to handle radial loads, thrust loads, or a combination of the two. Radial loads are perpendicular to the shaft. Thrust loads are parallel to the shaft. Sleeve bearings handle radial loads. Flange sleeve bearings handle both radial and thrust loads. Thrust bearings handle thrust loads.
Startup friction causes these porous Starter Bushing to release a thin layer of oil on the bearing’s surface.
DALON Starter Bushing PROPERTIES
|
GENERAL |
|
Unit |
Value |
|
Maximum load, p |
Static Dynamic |
N/mm2 N/mm2 |
20 10 |
|
Operating temperature |
Min Max |
°C °C |
-180 +300 |
|
Minimum density |
|
g/cm3 |
6.2 |
|
Minimum apparent porosity |
|
% |
20 |
|
Maximum sliding speed, U |
m/s |
0.1 - 6.0 * |
|
|
Maximum pU factor |
N/mm2 x m/s |
0.1 - 1.8 * |
|
|
Coefficient of friction |
|
0.05 - 0.25 * |
|
|
Surface roughness, Ra |
µm |
≤ 0.3 - ≤ 0.6 |
|
|
Surface hardness |
HB |
> 240 - > 355 |
|
DALON Starter Bushing MATERIAL STRUCTURE
|
MATERIAL CODE |
BASIC METAL |
ALLOY COMPOSITION |
|
Bronze based |
CuSn9010/ SAE841 ASTM B438-70; SintA50/CuSnPb663 |
Cu87.5~90.5,Fe1.0max,Sn9.5~10.5; CuSn663 |
Standard material specifications include: SAE 841 (CuSn9010), ASTMB 438 Grade 1 Type II,
CuSn 6-6-3, Sint B 50 & Standard impregnating oil conforms to SAE 30 specifications
Sintered Bronze and iron based self-lubricating bushings are made of two different functions:
The metallic alloy structure which supports and transfers the mechanical loads
The oil lubricant or graphite contents which separates two surfaces in relative motion and to reduce friction.
