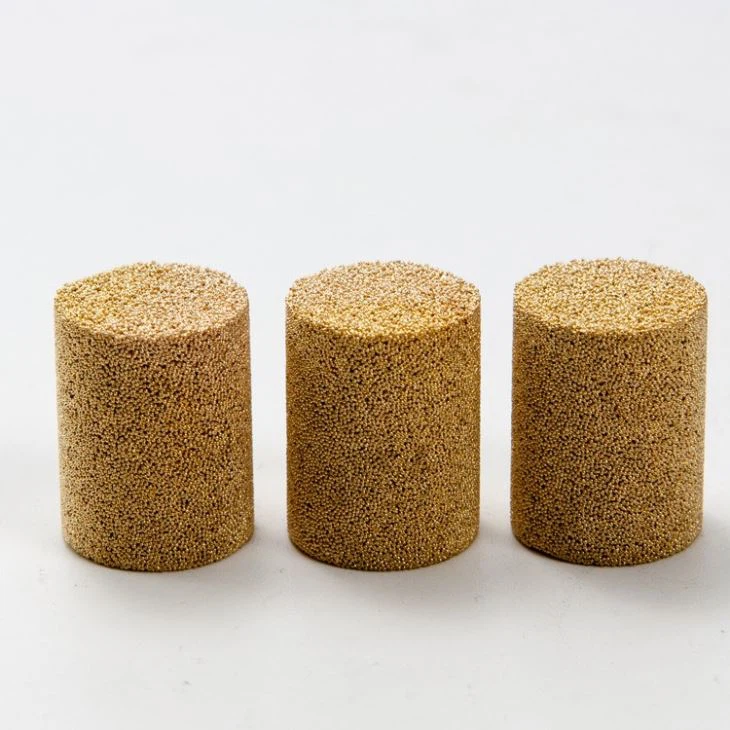

Sintered Bronze Filter

DALON manufacturer of porous SINTERED FILTER since 2002, offers a variety of solutions to meet our customer requirements.

Our SINTERED BRONZE FILTER are applied in sparging, sensor protection, gas and liquid filtration, dampening, bulk handling and etc. which for solution of corrosive and high temperature environments.

SINTERED BRONZE FILTER made of bronze spherical powder, which can be manufactured up to 1,000 mm length and 250 mm OD. Larger elements also can be assembled by welding procedure.

These sintered bronze filter cartridges can be cleaned for repeated use. They have a large surface area for high debris retention. Use them in a filter housing to reduce contaminants.

Standard Geometries of sintered bronze filter disc:

FILTER Discs and Plugs

• Ø d 1 mm to Ø d 250 mm (outside diameter)

• up to h 100 mm (length/ Thickness)

For more and special size and types, please feel free to contact DALON.

Properties of DALON SINTERED BRONZE FILTER
Filter Grade	Porosity	Permeability Coefficients		Pore size distribution			Shear strength
[micron]	[%]	[10-12 m2]	[10-7 m]	[dmin] um	MFP um	[dmax] um	[N/mm2]
8	29	2	52	8	11	21	130
12	32	6	64	11	15	37	120
20	38	10	83	18	26	57	110
30	36	14	89	21	31	61	100
45	37	43	144	30	47	101	90
60	41	50	202	31	53	147	90
80	42	114	282	37	72	175	80
100	42	127	406	48	98	220	70
120	40	230	633	65	125	280	60
150	44	248	643	68	140	305	40
200	48	463	1046	105	195	500	30
