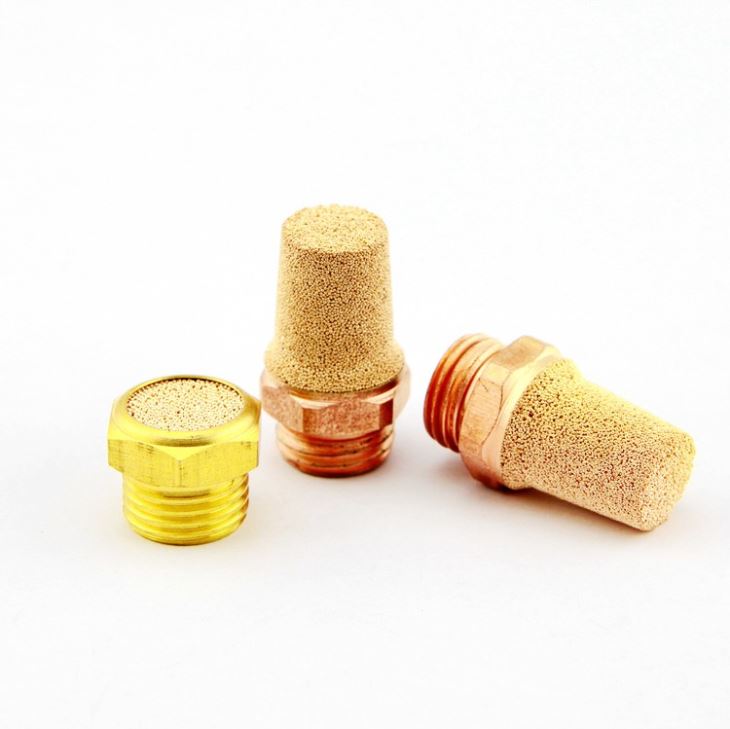

Sintered Bronze Muffler
DALON MUFFLER, is a brand name for SINTERED BRONZE MUFFLER as high porosity sintered elements from spherical Bronze powder. The pores are mechanically respect to size and filtering degree after the sintering process.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
DALON MUFFLER, is a brand name for SINTERED BRONZE MUFFLER as high porosity sintered elements from spherical Bronze powder. The pores are mechanically respect to size and filtering degree after the sintering process.
Properties of DALON SINTERED BRONZE MUFFLER | |||||||
Filter Grade | Porosity | Permeability Coefficients | Pore size distribution | Shear strength | |||
[micron] | [%] | [10-12 m2] | [10-7 m] | [dmin] um | MFP um | [dmax] um | [N/mm2] |
8 | 29 | 2 | 52 | 8 | 11 | 21 | 130 |
12 | 32 | 6 | 64 | 11 | 15 | 37 | 120 |
20 | 38 | 10 | 83 | 18 | 26 | 57 | 110 |
30 | 36 | 14 | 89 | 21 | 31 | 61 | 100 |
45 | 37 | 43 | 144 | 30 | 47 | 101 | 90 |
60 | 41 | 50 | 202 | 31 | 53 | 147 | 90 |
80 | 42 | 114 | 282 | 37 | 72 | 175 | 80 |
100 | 42 | 127 | 406 | 48 | 98 | 220 | 70 |
120 | 40 | 230 | 633 | 65 | 125 | 280 | 60 |
150 | 44 | 248 | 643 | 68 | 140 | 305 | 40 |
200 | 48 | 463 | 1046 | 105 | 195 | 500 | 30 |
Properties and application examples
DALON SINTERED BRONZE MUFFLER could be used with air powered tools, valves, and cylinders to reduce noise and filtering exhaust fumes.
