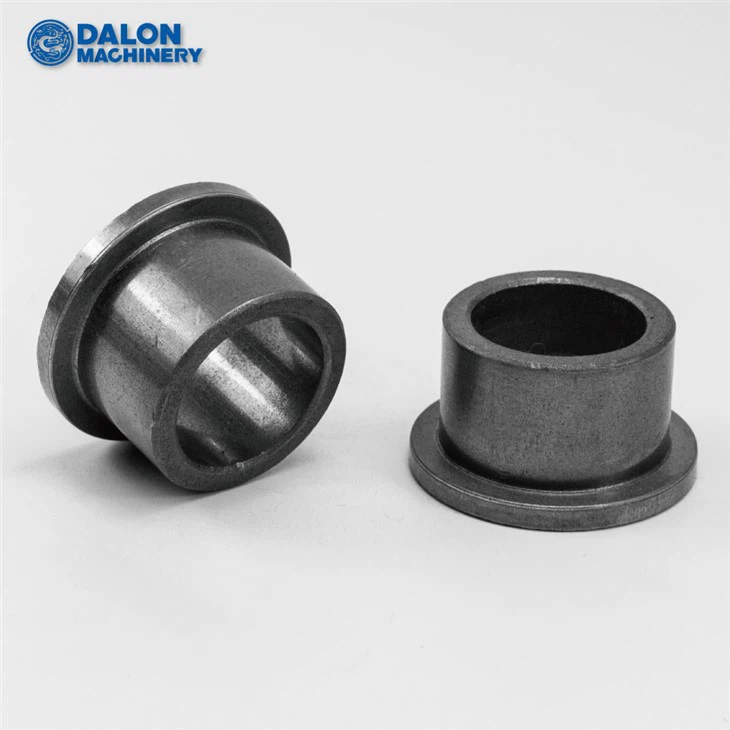

Sintered Porous Self Lubricating Iron Bushing
DALON Sintered Porous Self Lubricating Iron Bushing are manufactured of pressed iron powders by sintered technology and impregnated with lubricating oil and high porosity. Increased iron content makes these bushing stronger and more resistant to shock loads than standard oil-embedded bushing; they can operate at lower speeds.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PRODUCTS INTRODUCTION
Dry lubrication of Sintered Porous Self Lubricating Iron Bushing with solid lubricants under certain circumstances can achieve better friction coefficients than plastic bushings and casting bearings, for instance. Also Sintered Porous Self Lubricating Iron Bushing with content of graphite could reduce running sounds and good running properties.
An additional lubricant enables the longer service life to be increased.
Sintered Porous Self Lubricating Iron Bushing have a pore volume of between 15% to 30%, and these pores are used by oil impregnation for the bushing's entire service lifetime.
|
System of Measurement |
Inch / Metric |
|
Bearing Type |
Plain |
|
Plain Bearing Type |
Sleeve / Flange / Spherical |
|
For Load Direction |
Radial |
|
Material |
Iron based |
|
Tolerance Standard |
F7 r7 Js13 |
|
Lubrication Method |
Embedded Lubricated |
|
For Shaft Type |
Round |
|
Shaft Mount Type |
Slip Fit |
Load Direction:
Our sintered sliding bearings can be manufactured in accordance with the primary DIN1494, ISO and MPIF standards, but can also made to meet special requirements.
TYPES OF SINTERED IRON BUSH BEARING
CYLINDRICAL
FLANGE
SPHERICAL
SPHERICAL WITH RING
DALON BUSHING TYPE
TYPES OF BUSHING
CYLINDRICAL BUSHING
This most cost-effective form of bearing is primarily pushed into a pre-processed bearing bore using a mandrel.
FLANGE BUSHING
Differ from cylindrical bearings with their flange on one side. This serves as a restraint during installation, and in certain cases, also serves as a larger support when placed under axial loads. This form of bearing also needs to be pushed in using a mandrel.
SPHERICAL BUSHING
Guarantees autonomous re-alignment of the bearing bore. The bore diameter remains unchanged when installing the spherical bearing. However, the installation is somewhat more complicated.
SPHERICAL BUSHING WITH RING
The main purpose of the extension is to compensate for any in-between spaces.
DALON BUSHING FAQ:
Q: About Sample?
A: DALON can supply the samples for FREE, but the customers have to support the tooling cost if have and the courier cost.
Q: Tooling Charge?
A: Tooling charge is one off when first order, all future orders would not charge again even tooling repair or under maintaince.
Q: Lead Time?
A: DALON usually effect delivery within 21days after advance payment. Stock items could be delivered within 3days. If item need open tooling, consider extra 7days.
