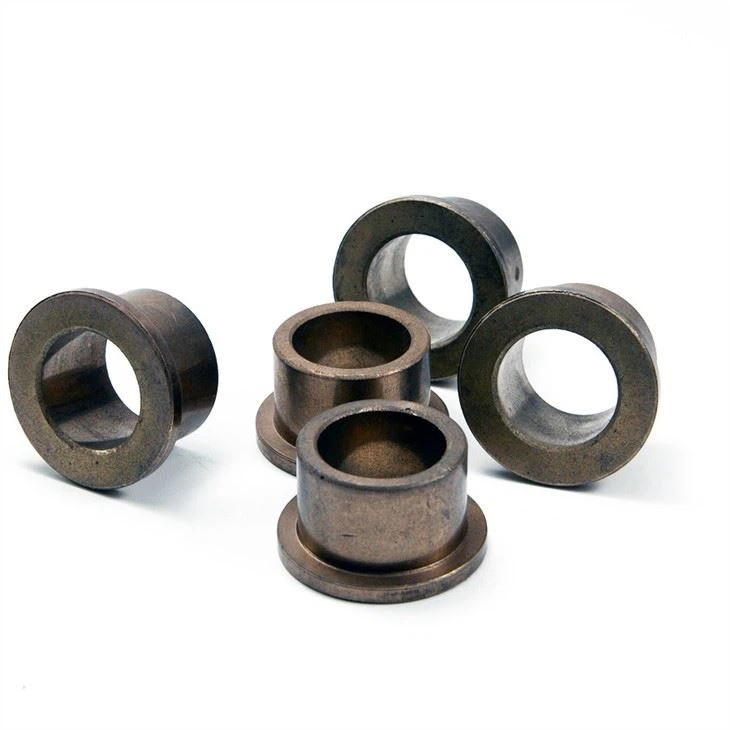

SAE841 Oil Embedded Sleeve Bronze Bearing
DALON self-lubricating sintered bronze bushing are manufactured of pressed copper and tin powders by sintered technology and impregnated with lubricating oil and high porosity (20-25% in volume). The oil contained in the porosity provides a constant lubrication between bearing and shaft, the system does not need any additional external lubricant, allows this type of sintered bronze bushing to work under hydrodynamic conditions. which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
Product Introduction
Through our high level of technological innovation, we make our self lubricating bearing in powder metallurgy, Food Grade Bronze Bushing, metal sleeve bushing unique in character, environmentally friendly and of the highest quality. Accurate quality, strict delivery and perfect service are our promise. The company has achieved a good reputation with high-quality products, good reputation and high-quality service. We believe that win-win is the key to business success and integrity is the law of evergreen, and the only way to achieve long-term development is to adhere to integrity and win-win. With innovation as our driving force, we strengthen our innovation strategy and hope to build an innovative enterprise.
|
Material Specifications |
|||||||
|
Composition |
Density |
Porosity |
K Strength Constant |
Tensile Strength |
Elongation |
Yield PSI |
Comparable Designations |
|
|
(gm/cc) |
(% by Vol.) |
|
|
(in 1" %) |
|
|
|
Copper 87.5-90.5 |
6.4-6.8 |
19 min |
26,500 |
14,000 |
1 |
11,000 |
ASTM B-438-70 |
|
Iron 1.0 max |
|
|
|
|
|
|
GR1 Type II |
|
Tin 9.5-11.5 |
|
|
|
|
|
|
MPIF CT-0010-R |
|
Carbon 1.75 max |
|
|
|
|
|
|
Mil-B-5687C |
Storage of SAE 841 Bronze Sleeve Bearing – These bearings must be stored in non-absorbing containers. Do not store in paper or cloth container. Do not store in cardboard boxes. The best containers are made of plastic or metal.
Supplementary Lubrication – Additional lubrication can be provided through the use of oil soaked felts, wicks, etc. or by periodic oiling. A unique advantage of this type of bearing is that it does not require any grooving or holes to distribute the oil across the bearing face due to the microscopic pores in the bearing material.
Custom Made SAE 841 Bronze Sleeve Bearing – Custom SAE 841 Bronze Sleeve Bearing can be designed and manufactured according to customer specifications, including requirements for special dimensions and/or materials. Please offer your drawings by email and we will made a quotation quickly.
We adhere to the system innovation and product structure optimization, combined with international innovation technology, and spare no effort in the R & D and manufacturing of high-quality SAE841 Oil Embedded Sleeve Bronze Bearing. All around to meet the needs of users, win the trust of users is our goal. We are willing to work with colleagues from all walks of life to face the future, win-win and share, advance hand in hand and seek common development. We welcome friends in different fields to visit our company and discuss business. We are always following our enterprise culture : 'To offer service with faith and credit, To be stronger by continuous improvement'.
