Mineral Water Treatment 10 20 30 40 Inch 0.45 Microns Nylon N66 Membrane Filter with Ss 226 Fin Adaptor
316L Sintered Stainless Steel Filters are made from any metallurgical material that is produced as powder /wires. The filters ultimate properties are influenced by the shape, size and distribution of the powder.
Product Introduction
We are striving to generally be a very good business partner of you for stainless steel charcoal water filter, bronze flanged sleeve bearing, Sintered Metallic filter. We rely on our timely, fast, serious after-sales service to become a number of high-quality enterprise partners. Since its establishment, our company has been recruiting talents, advancing bravely, and timely introducing high-tech information system and world advanced management mode to ensure the smooth and efficient transmission of internal information. High quality, high requirements, high quality and high efficiency are our purposes, customer satisfaction is our goal, and using professional technology to make professional products is our philosophy. We will further strengthen corporate management, deepen internal reforms, give full play to group advantages, and continue to introduce advanced management concepts.



Stainless Steel SINTERED FILTERS
Stainless Steel sintered filters are made from any metallurgical material that is produced as powder. The filters ultimate properties are influenced by the shape, size and distribution of the powder.
The most common materials are highly alloyed Stainless Steel types, but there are also nickel-based Stainless Steel varieties and titanium.
During the production of Stainless Steel sintered filters, the powder is compressed into a mold to create a solid, brittle component. The pore size can be determined by the power that is chosen and the pressing force that is applied.
During Sintering, the powder particles are fused to one another at temperatures well below the melting point of the material. This process gives the highly porous filter their characteristic shape and properties.
After sintering, the size and position of the pores are mechanically fixed. The powder particles also form a rigid whole. This gives the filters a strength, form and stability equal to those of a metal component.

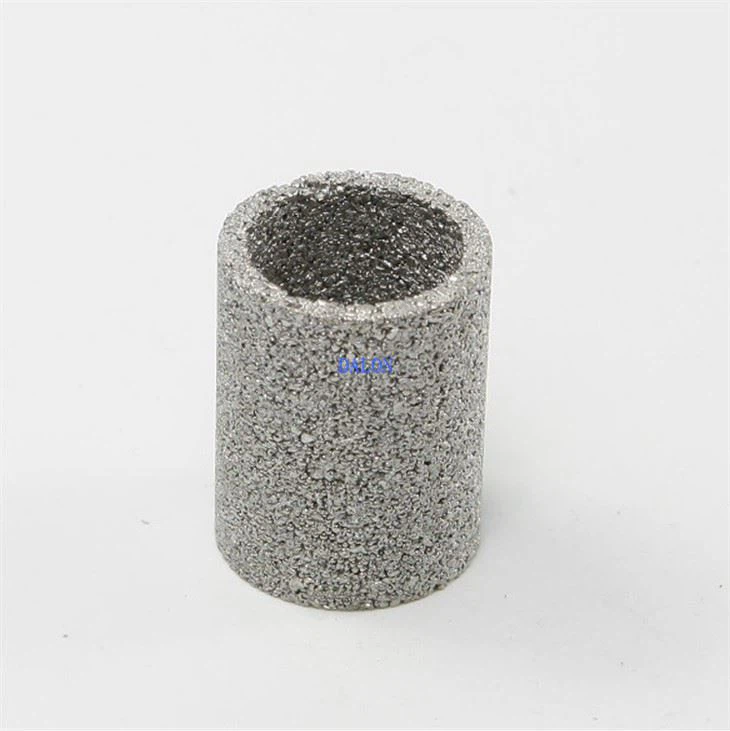

Stainless steel filter are sintered porous Stainless Steel parts produced from irregularly shaped SS powder, GENERALLY AISI 316L.
They are stronger than bronze filters because of the powder's irregular shape. They are also suitable for higher temperatures.
Properties of DALON sintered porous Stainless Steel | |||||||
Filter Grade | Porosity | Permeability Coefficients | Pore size distribution | Shear strength | |||
[micron] | [%] | [10-12 m2] | [10-7 m] | [dmin] um | MFP um | [dmax] um | [N/mm2] |
8 | 29 | 2 | 52 | 8 | 11 | 21 | 130 |
12 | 32 | 6 | 64 | 11 | 15 | 37 | 120 |
20 | 38 | 10 | 83 | 18 | 26 | 57 | 110 |
30 | 36 | 14 | 89 | 21 | 31 | 61 | 100 |
45 | 37 | 43 | 144 | 30 | 47 | 101 | 90 |
60 | 41 | 50 | 202 | 31 | 53 | 147 | 90 |
80 | 42 | 114 | 282 | 37 | 72 | 175 | 80 |
100 | 42 | 127 | 406 | 48 | 98 | 220 | 70 |
120 | 40 | 230 | 633 | 65 | 125 | 280 | 60 |
150 | 44 | 248 | 643 | 68 | 140 | 305 | 40 |
200 | 48 | 463 | 1046 | 105 | 195 | 500 | 30 |





The company adopts the industry’s advanced Mineral Water Treatment 10 20 30 40 Inch 0.45 Microns Nylon N66 Membrane Filter with Ss 226 Fin Adaptor production equipment and professional technical personnel. Every process of Mineral Water Treatment 10 20 30 40 Inch 0.45 Microns Nylon N66 Membrane Filter with Ss 226 Fin Adaptor production has been strictly controlled, with professional quality and perfect after-sales The service is trusted by users. We insist on speeding up the development of overseas business and promoting the rapid development of our company. The company relies on the increasing domestic production technology and production cost advantages to carry out technical cooperation with foreign customers.
Hot Tags: 316l stainless steel filters, China, manufacturers, suppliers, factory, wholesale, custom, flanged sleeve bushing, pe disc filter, Sae 660 Bronze Bushing, Bronze Muffler, Sintered Metal Wire Cloth filter, Plastic Air Silencer
