Fabrication Bushings Oil Impregnated Bronze Bushing

Fabrication Bushings Oil Impregnated Bronze Bushing

DALON self-lubricating sintered bronze bushing are manufactured of pressed copper and tin powders by sintered technology and impregnated with lubricating oil and high porosity (20-25% in volume). The oil contained in the porosity provides a constant lubrication between bearing and shaft, the system does not need any additional external lubricant, allows this type of sintered bronze bushing to work under hydrodynamic conditions. which resulting in a very low friction coefficient and maintenance-free for general engineering applications.

Send Inquiry
Product Introduction

We will, as always, make efforts to further develop the advantages of scientific and technological talents, and make efforts to develop and dedicate first-class air pump muffler, tube filter, Sintered Porous Metal Filter to users. To survive and develop with high-quality service and mutual benefit, and constantly provide customers with high-quality service is our goal. Our company always uphold the "people-oriented" talent concept, and actively create an atmosphere of respect, understanding, integrity and friendship, respect for human knowledge and talent, selection and development mechanism.

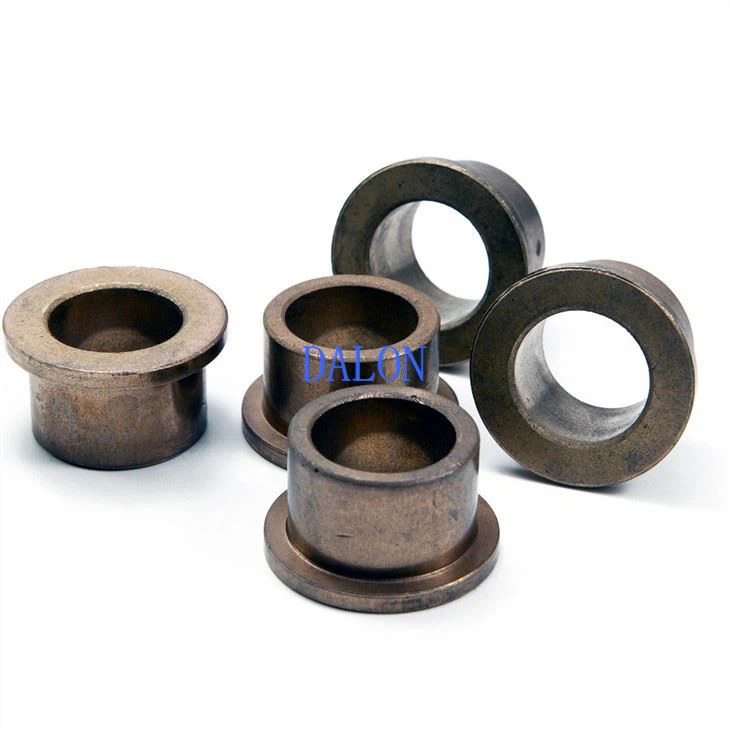

custom bronze bushingbush bearing

DALON Oil Impregnated Bushingmade by SAE 841 Sintered Powdered Metal - commonly used in machinery components, self-lubricating pump parts, turbine blades, office machines, home appliances, medical equipment, farm equipment and lawn and garden equipment.

Material Specifications

Composition

Density

Porosity

K Strength Constant

Tensile Strength

Elongation

Yield PSI

Comparable Designations



(gm/cc)

(% by Vol.)





(in 1" %)





Copper 87.5-90.5

6.4-6.8

19 min

26,500

14,000

1

11,000

ASTM B-438-70

Iron 1.0 max













GR1 Type II

Tin 9.5-11.5













MPIF CT-0010-R

Carbon 1.75 max













Mil-B-5687C



Storage of Oil Impregnated Bushing – These bearings must be stored in non-absorbing containers. Do not store in paper or cloth container. Do not store in cardboard boxes. The best containers are made of plastic or metal.

Supplementary Lubrication – Additional lubrication can be provided through the use of oil soaked felts, wicks, etc. or by periodic oiling. A unique advantage of this type of bearing is that it does not require any grooving or holes to distribute the oil across the bearing face due to the microscopic pores in the bearing material.

Custom Made Oil Impregnated Bushing – Custom Oil Impregnated Bushing can be designed and manufactured according to customer specifications, including requirements for special dimensions and/or materials. Please offer your drawings by email and we will made a quotation quickly.

Oil Impregnated Bushingbronze flanged sleeve bearingbronze flange bearingoil impregnated bushing







Under the right leadership, our sales of Fabrication Bushings Oil Impregnated Bronze Bushing and professional technical services have grown significantly and consolidated our leadership in the marketplace. Innovation is the source and power of circular economy development. Our company always puts innovation in the top position of the company's development. Our team adheres to the service concept of "sincerity, professionalism and excellence" and strides forward towards our dream.
