DALON POLYETHYLENE FILTER INTRODUCTION:

Plastic polyethylene filter are made from spherical PE powder. the form, size and distribution of the powder are important parameters which affect the filters' properties.

Gravity or “loose powder” sintering is used to make porous plastic parts from powders that diffusion-bond easily. In this process, no outside pressure is applied to shape the part. The appropriate material, graded for size, is poured into a mold cavity, which is a void in the shape of the finished part. These metal particles are then heated to their sintering temperature at which point a metallurgical bonding takes place, and joining “necks” are formed at contact points.

Sintered PE filters are produced using the gravity sintering method. the PE powder is placed in a mold and sintered.

During sintering, the powder particles are fused to one another at temperatures well below the melting point of the material. this process gives the highly porous filters their characteristic shape and properties.

After sintering, the size and position of the pores are mechanically fixed. the powder particles also form a rigid whole. this gives the filters a strength, form and stability equal to those of a plastic component.

There are two main types of sintered PE filters as Hydrophilic & Hydrophobic

Polyethylene Filter

Polyethylene Filter

Porous sintered polyethylene products are a depth-filtration medium with distribution of pore size and length of passage qualities that are a factor of particle size, shape, and part dimension. The depth-filter not only has more dirt-holding capacity that a screen filter, but also has a higher pressure drop than a screen of equivalent porosity rating.

Filter Elements of Sintered Filters

Our various high porosity polyethylene filter elements can be manufactured in the following standard geometries:

1) Discs

2) Cylinders

3) Cones

4) Plates

5) Silencers

Standard Geometries of polyethylene filter

DALON FILTER Discs and Plugs

1) Ø d 1 mm to Ø d 250 mm

2) up to h 100 mm

DALON FILTER Rings and Hollow cylinder

1) Ø d 4 mm to Ø d 250 mm

2) up to h 1000 mm

and according to diameter, either seamless or welded from sections

DALON FILTER Plates

1) length up to 1000 mm

2) width up to 250 mm

3) height up to 50 mm

4) larger dimensions welded from sections

DALON FILTER conical with or without flange

1) Ø d 4 mm to Ø d 100 mm

2) h 8 mm to h 250 mm

DALON FILTER conical

1) Ø d 4 mm to Ø d 100 mm

2) h 5 mm to h 250 mm

DALON FILTER Cones with flange

1) Ø d 2 mm to Ø d 200 mm

2) h 2 mm to h 250 mm

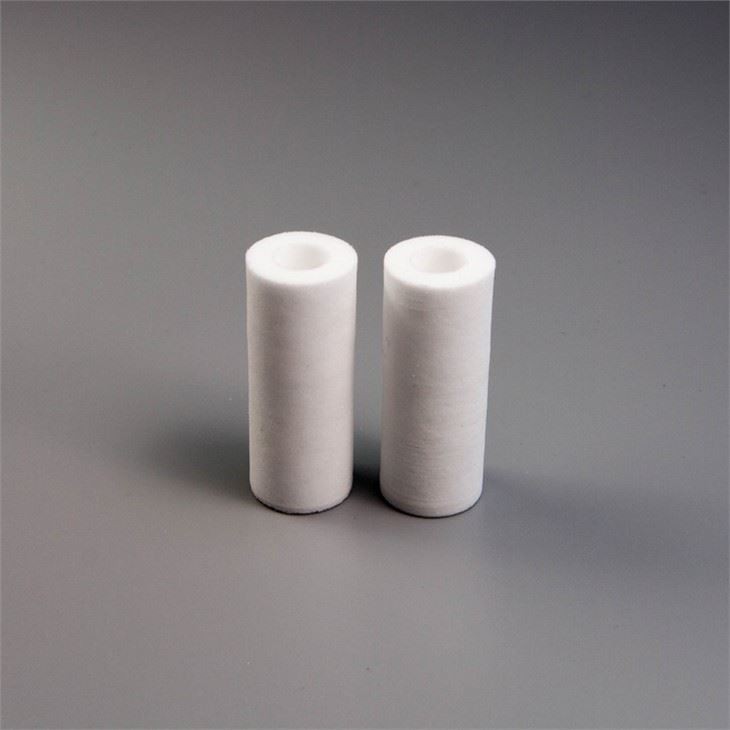

Excellent Customized Standard Component UHMW Polyethylene Filter Screw Air Compressor China quality and service have continuously improved the company's product visibility, and its marketing network covers all cities across the country. Our company is base on the strategic development vision of economic globalization, and we continuously push the product marketing network to the world. We always adhere to the 'integrity-based, customer-oriented' business philosophy. We sincerely hope to cooperate with you with our professional and perfect technology and service.
