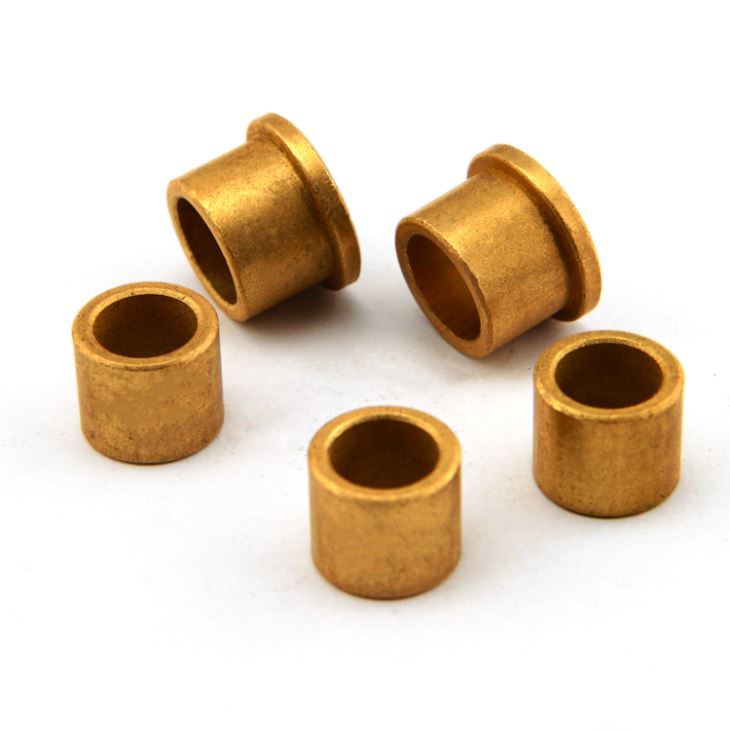

Custom High Precision Brass Bushing Casting CNC Machining Sintered Cast Bronze Bushing
DALON self-lubricating sintered bronze bushing are manufactured of pressed copper and tin powders by sintered technology and impregnated with lubricating oil and high porosity (20-25% in volume).
Product Introduction
With the business philosophy of 'creating enterprise products with quality and winning customers with reputation', we are willing to establish good and long-term close cooperative relations with customers at home and abroad, and strive for the development of Cylindrical Air Filters, Sintered Metallic Filters, Stainless Steel Hood Filter industry. With strong technical strength, supply and marketing capabilities, our products are widely used and favored. We are always striving towards the goal of being a leading enterprise in the industry, writing a new chapter in history and creating a new glory of modern enterprise development. Welcome all customers of home and abroad to visit our company, to forge a brilliant future by our cooperation.
DALON BUSHING INTRODUCTION:
DALON self-lubricating sintered bronze bushing are manufactured of pressed copper and tin powders by sintered technology and impregnated with lubricating oil and high porosity (20-25% in volume).
The oil contained in the porosity provides a constant lubrication between bearing and shaft, the system does not need any additional external lubricant, allows this type of sintered bronze bushing to work under hydrodynamic conditions. which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
System of Measurement | Inch / Metric |
Bearing Type | Plain |
Plain Bearing Type | Sleeve / Flange / Spherical |
For Load Direction | Radial |
Material | SAE841 Bronze |
Tolerance Standard | F7 r7 Js13 |
Lubrication Method | Embedded Lubricated |
For Shaft Type | Round |
Shaft Mount Type | Slip Fit |
Load Direction:
All plain bearings are designed to handle radial loads, thrust loads, or a combination of the two. Radial loads are perpendicular to the shaft. Thrust loads are parallel to the shaft. Sleeve bearings handle radial loads. Flanged sleeve bearings handle both radial and thrust loads. Thrust bearings handle thrust loads.
Startup friction causes these porous sintered bronze bushing to release a thin layer of oil on the bearing’s surface.
DALON STANDARD BUSHING LIST
Item No. | For Shaft | For Housing |
| Unit Weight | Lubrication | Lubricant |
DOB | ID, mm | OD,mm | Length ,mm | ,Grams |
|
|
DOB476 | 4 | 7 | 6 | 1.01 | Lubricated | SAE 30 Oil |
DOB484 | 4 | 8 | 4 | 0.98 | Lubricated | SAE 30 Oil |
DOB488 | 4 | 8 | 8 | 1.96 | Lubricated | SAE 30 Oil |
DOB585 | 5 | 8 | 5 | 0.99 | Lubricated | SAE 30 Oil |
DOB5810 | 5 | 8 | 10 | 1.99 | Lubricated | SAE 30 Oil |
DOB696 | 6 | 9 | 6 | 1.38 | Lubricated | SAE 30 Oil |
DOB6910 | 6 | 9 | 10 | 2.30 | Lubricated | SAE 30 Oil |
DOB6106 | 6 | 10 | 6 | 1.96 | Lubricated | SAE 30 Oil |
DOB61010 | 6 | 10 | 10 | 3.27 | Lubricated | SAE 30 Oil |
DOB61016 | 6 | 10 | 16 | 5.22 | Lubricated | SAE 30 Oil |
DOB6126 | 6 | 12 | 6 | 3.31 | Lubricated | SAE 30 Oil |
DOB7118 | 7 | 11 | 8 | 2.94 | Lubricated | SAE 30 Oil |
DOB8118 | 8 | 11 | 8 | 2.33 | Lubricated | SAE 30 Oil |
DOB81112 | 8 | 11 | 12 | 3.49 | Lubricated | SAE 30 Oil |
DOB8126 | 8 | 12 | 6 | 2.45 | Lubricated | SAE 30 Oil |
DOB8128 | 8 | 12 | 8 | 3.27 | Lubricated | SAE 30 Oil |
DOB81212 | 8 | 12 | 12 | 4.90 | Lubricated | SAE 30 Oil |
DOB81216 | 8 | 12 | 16 | 6.53 | Lubricated | SAE 30 Oil |
DOB8148 | 8 | 14 | 8 | 5.39 | Lubricated | SAE 30 Oil |
DOB101310 | 10 | 13 | 10 | 3.52 | Lubricated | SAE 30 Oil |
DOB101316 | 10 | 13 | 16 | 5.63 | Lubricated | SAE 30 Oil |
DOB101410 | 10 | 14 | 10 | 4.90 | Lubricated | SAE 30 Oil |
DOB101416 | 10 | 14 | 16 | 7.84 | Lubricated | SAE 30 Oil |
DOB101610 | 10 | 16 | 10 | 7.96 | Lubricated | SAE 30 Oil |
DOB101625 | 10 | 16 | 25 | 19.90 | Lubricated | SAE 30 Oil |
DOB121512 | 12 | 15 | 12 | 4.96 | Lubricated | SAE 30 Oil |
DOB121516 | 12 | 15 | 16 | 6.61 | Lubricated | SAE 30 Oil |
DOB121520 | 12 | 15 | 20 | 8.27 | Lubricated | SAE 30 Oil |
DOB12168 | 12 | 16 | 8 | 4.57 | Lubricated | SAE 30 Oil |
DOB121612 | 12 | 16 | 12 | 6.86 | Lubricated | SAE 30 Oil |
DOB121616 | 12 | 16 | 16 | 9.14 | Lubricated | SAE 30 Oil |
DOB121620 | 12 | 16 | 20 | 11.43 | Lubricated | SAE 30 Oil |
DOB121812 | 12 | 18 | 12 | 11.02 | Lubricated | SAE 30 Oil |
DOB121816 | 12 | 18 | 16 | 14.70 | Lubricated | SAE 30 Oil |
DOB121820 | 12 | 18 | 20 | 18.37 | Lubricated | SAE 30 Oil |
DOB131616 | 13 | 16 | 16 | 7.10 | Lubricated | SAE 30 Oil |
DOB141814 | 14 | 18 | 14 | 9.14 | Lubricated | SAE 30 Oil |
DOB141818 | 14 | 18 | 18 | 11.76 | Lubricated | SAE 30 Oil |
DOB141822 | 14 | 18 | 22 | 14.37 | Lubricated | SAE 30 Oil |
DOB142014 | 14 | 20 | 14 | 14.57 | Lubricated | SAE 30 Oil |
DOB142018 | 14 | 20 | 18 | 18.74 | Lubricated | SAE 30 Oil |
DOB142022 | 14 | 20 | 22 | 22.90 | Lubricated | SAE 30 Oil |
DOB151910 | 15 | 19 | 10 | 6.94 | Lubricated | SAE 30 Oil |
DOB151916 | 15 | 19 | 16 | 11.10 | Lubricated | SAE 30 Oil |
DOB151920 | 15 | 19 | 20 | 13.88 | Lubricated | SAE 30 Oil |
DOB152116 | 15 | 21 | 16 | 17.63 | Lubricated | SAE 30 Oil |
DOB152120 | 15 | 21 | 20 | 22.04 | Lubricated | SAE 30 Oil |
DOB162012 | 16 | 20 | 12 | 8.82 | Lubricated | SAE 30 Oil |
DOB162016 | 16 | 20 | 16 | 11.76 | Lubricated | SAE 30 Oil |
DOB162020 | 16 | 20 | 20 | 14.70 | Lubricated | SAE 30 Oil |
DOB162216 | 16 | 22 | 16 | 18.61 | Lubricated | SAE 30 Oil |
DOB162220 | 16 | 22 | 20 | 23.27 | Lubricated | SAE 30 Oil |
DOB182218 | 18 | 22 | 18 | 14.70 | Lubricated | SAE 30 Oil |
DOB182222 | 18 | 22 | 22 | 17.96 | Lubricated | SAE 30 Oil |
DOB182418 | 18 | 24 | 18 | 23.14 | Lubricated | SAE 30 Oil |
DOB182422 | 18 | 24 | 22 | 28.29 | Lubricated | SAE 30 Oil |
DOB182518 | 18 | 25 | 18 | 27.65 | Lubricated | SAE 30 Oil |
DOB182522 | 18 | 25 | 22 | 33.79 | Lubricated | SAE 30 Oil |
DOB202416 | 20 | 24 | 16 | 14.37 | Lubricated | SAE 30 Oil |
DOB202420 | 20 | 24 | 20 | 17.96 | Lubricated | SAE 30 Oil |
DOB202616 | 20 | 26 | 16 | 22.53 | Lubricated | SAE 30 Oil |
DOB202620 | 20 | 26 | 20 | 28.17 | Lubricated | SAE 30 Oil |
DOB202630 | 20 | 26 | 30 | 42.25 | Lubricated | SAE 30 Oil |
DOB202816 | 20 | 28 | 16 | 31.35 | Lubricated | SAE 30 Oil |
DOB202820 | 20 | 28 | 20 | 39.19 | Lubricated | SAE 30 Oil |
DOB222718 | 22 | 27 | 18 | 22.50 | Lubricated | SAE 30 Oil |
DOB222722 | 22 | 27 | 22 | 27.50 | Lubricated | SAE 30 Oil |
DOB222818 | 22 | 28 | 18 | 27.55 | Lubricated | SAE 30 Oil |
DOB222822 | 22 | 28 | 22 | 33.68 | Lubricated | SAE 30 Oil |
DOB222918 | 22 | 29 | 18 | 32.79 | Lubricated | SAE 30 Oil |
DOB222922 | 22 | 29 | 22 | 40.08 | Lubricated | SAE 30 Oil |
DOB253020 | 25 | 30 | 20 | 28.06 | Lubricated | SAE 30 Oil |
DOB253025 | 25 | 30 | 25 | 35.08 | Lubricated | SAE 30 Oil |
DOB253030 | 25 | 30 | 30 | 42.10 | Lubricated | SAE 30 Oil |
DOB253220 | 25 | 32 | 20 | 40.72 | Lubricated | SAE 30 Oil |
DOB253225 | 25 | 32 | 25 | 50.90 | Lubricated | SAE 30 Oil |
DOB253232 | 25 | 32 | 32 | 65.15 | Lubricated | SAE 30 Oil |
DOB253525 | 25 | 35 | 25 | 76.54 | Lubricated | SAE 30 Oil |
DOB253535 | 25 | 35 | 35 | 107.15 | Lubricated | SAE 30 Oil |
DOB283222 | 28 | 32 | 22 | 26.94 | Lubricated | SAE 30 Oil |
DOB303825 | 30 | 38 | 25 | 69.39 | Lubricated | SAE 30 Oil |
DOB303830 | 30 | 38 | 30 | 83.27 | Lubricated | SAE 30 Oil |
DOB303840 | 30 | 38 | 40 | 111.03 | Lubricated | SAE 30 Oil |
DOB304025 | 30 | 40 | 25 | 89.29 | Lubricated | SAE 30 Oil |
DOB304030 | 30 | 40 | 30 | 107.15 | Lubricated | SAE 30 Oil |
DOB304040 | 30 | 40 | 40 | 142.87 | Lubricated | SAE 30 Oil |
DOB324032 | 32 | 40 | 32 | 94.05 | Lubricated | SAE 30 Oil |
DOB354525 | 35 | 45 | 25 | 102.05 | Lubricated | SAE 30 Oil |
DOB354535 | 35 | 45 | 35 | 142.87 | Lubricated | SAE 30 Oil |
DOB354550 | 35 | 45 | 50 | 204.10 | Lubricated | SAE 30 Oil |
DOB405030 | 40 | 50 | 30 | 137.77 | Lubricated | SAE 30 Oil |
DOB405040 | 40 | 50 | 40 | 183.69 | Lubricated | SAE 30 Oil |
DOB405060 | 40 | 50 | 60 | 275.54 | Lubricated | SAE 30 Oil |
DOB455545 | 45 | 55 | 45 | 229.61 | Lubricated | SAE 30 Oil |
DOB455555 | 45 | 55 | 55 | 280.64 | Lubricated | SAE 30 Oil |
DOB506040 | 50 | 60 | 40 | 224.51 | Lubricated | SAE 30 Oil |
DOB506050 | 50 | 60 | 50 | 280.64 | Lubricated | SAE 30 Oil |
DOB506060 | 50 | 60 | 60 | 336.77 | Lubricated | SAE 30 Oil |
DOB506070 | 50 | 60 | 70 | 392.89 | Lubricated | SAE 30 Oil |
DOB506075 | 50 | 60 | 75 | 420.96 | Lubricated | SAE 30 Oil |
DOB556555 | 55 | 65 | 55 | 336.77 | Lubricated | SAE 30 Oil |
DOB556570 | 55 | 65 | 70 | 428.61 | Lubricated | SAE 30 Oil |
DOB606850 | 60 | 68 | 50 | 261.25 | Lubricated | SAE 30 Oil |
DOB606860 | 60 | 68 | 60 | 313.50 | Lubricated | SAE 30 Oil |
DOB607050 | 60 | 70 | 50 | 331.66 | Lubricated | SAE 30 Oil |
DOB607060 | 60 | 70 | 60 | 398.00 | Lubricated | SAE 30 Oil |
DOB607070 | 60 | 70 | 70 | 464.33 | Lubricated | SAE 30 Oil |
Custom made to order Sintered bronze bushing, please specify ID and OD and Length. The difference between the ID and OD must be at least 2mm, Length Maximum 75mm
