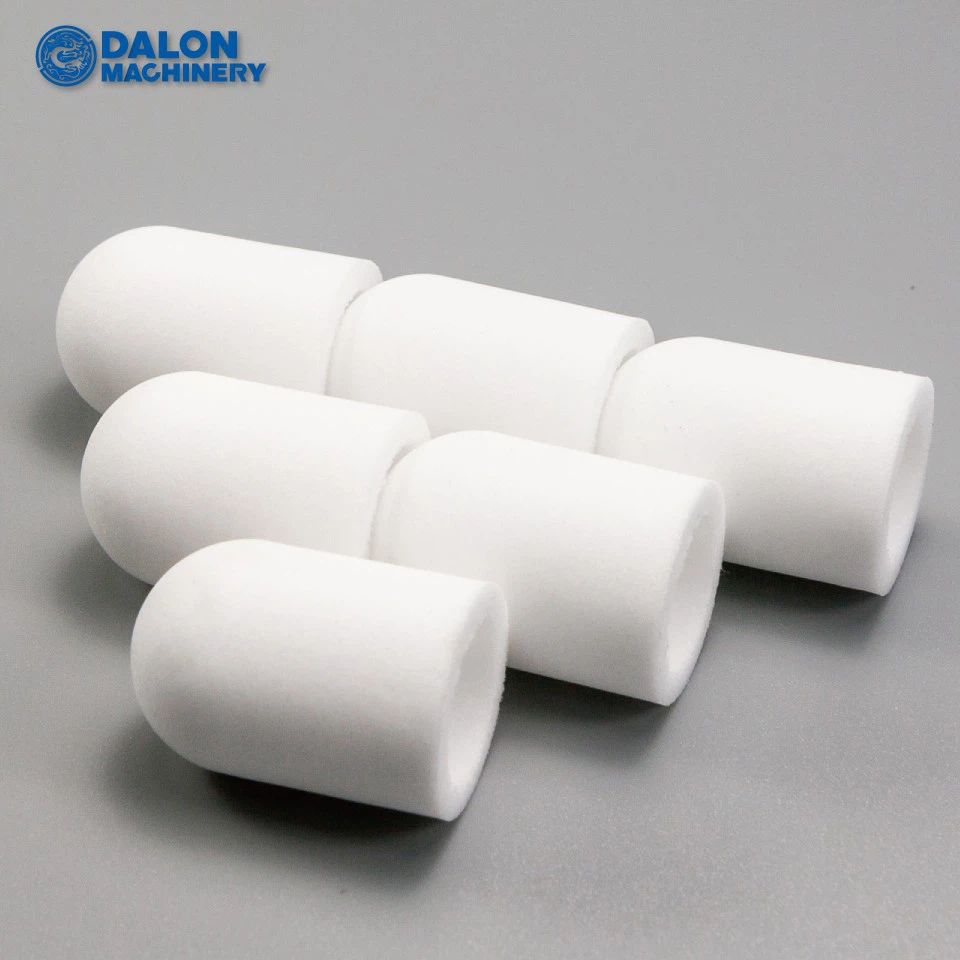

Cylinder Laboratory filter are made from spherical PE powder. the form, size and distribution of the powder are important parameters which affect the filters' properties.

Sintered PE filters are produced using the gravity sintering method. the PE powder is placed in a mold and sintered.

During sintering, the powder particles are fused to one another at temperatures well below the melting point of the material. this process gives the highly porous filters their characteristic shape and properties.

After sintering, the size and position of the pores are mechanically fixed. the powder particles also form a rigid whole. this gives the filters a strength, form and stability equal to those of a plastic component.

DALON FILTER Discs and Plugs

1) Ø d 1 mm to Ø d 250 mm

2) up to h 100 mm

DALON FILTER Rings and Hollow cylinder

1) Ø d 4 mm to Ø d 250 mm

2) up to h 1000 mm

and according to diameter, either seamless or welded from sections

DALON FILTER Plates

1) length up to 500 mm

2) width up to 500 mm

3) height up to 50 mm

4) larger dimensions welded from sections

DALON FILTER conical with or without flange

1) Ø d 4 mm to Ø d 100 mm

2) h 8 mm to h 250 mm

DALON FILTER conical

1) Ø d 4 mm to Ø d 100 mm

2) h 5 mm to h 250 mm

DALON FILTER Cones with flange

1) Ø d 2 mm to Ø d 200 mm

2) h 2 mm to h 250 mm

The primary applications for porous sintered plastics are the following:

1.) Filters for Separating Solids from Liquids and Gases;

i.e., filters for catalyst retention, fuel oil burners, polymer processing, instruments, pressure regulators, cryogenic fluids, medical drug delivery systems

2.) Fluid Flow Metering and Pressure Control;

i.e., flow restrictors, calibrated leaks, breather vents, pneumatic delays, timing devices, gauge snubbers, and pressure equalization

3.) Storage Reservoirs for Liquids;

i.e., self-lubricating bearings*, wicks, cooling devices, heat exchange elements

4.) Flame and Spark Arrestors for Safe Handling of Flammable Gases; i.e., welding/cutting torch flame arrestors, electrical enclosures

5.) Sound Dampening and Attenuation:

i.e., pneumatic mufflers and silencers, microphone attenuators

6.) Gas Distribution and Sparging;

i.e., fluidized bed surfaces, air bearings, vacuum plates, spargers for carbonation, oxygen stripping, ozone injection

7.) Media Retention;

i.e., permeable barriers for desiccants, getters and purifiers
